PIC16F1829 (DIP-20)

PIC16F1829 (DIP-20) pinout

← All pinouts · Microcontroller chips

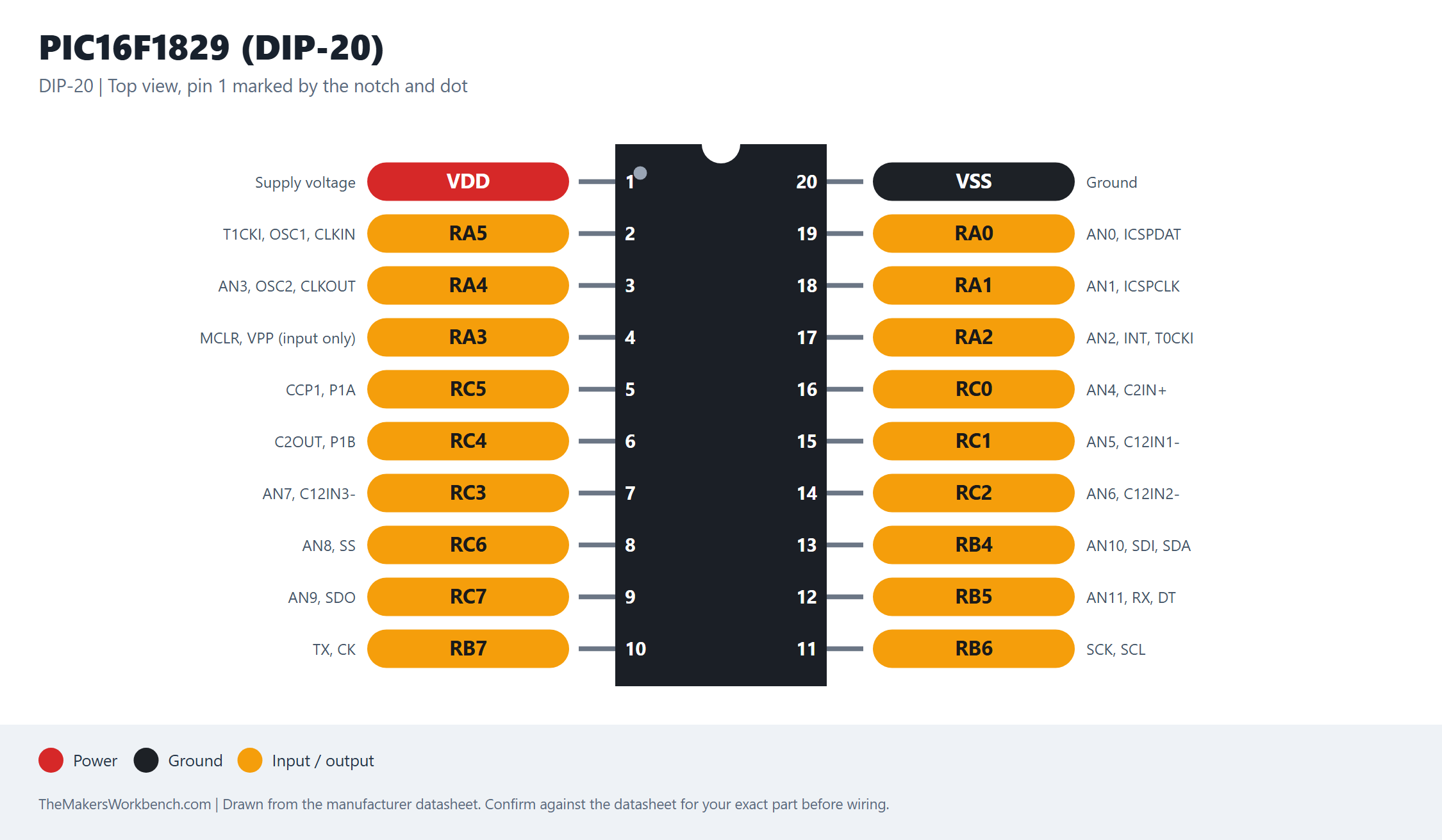

PIC16F1829 (DIP-20) pinout diagram

Click the image to open it full size.

Notes

A modern 20-pin enhanced mid-range PIC with two I2C/SPI modules, a UART and an internal 32 MHz oscillator. RA3 is input-only and doubles as MCLR. Programming (ICSP) uses MCLR, VDD, VSS, PGD and PGC.
