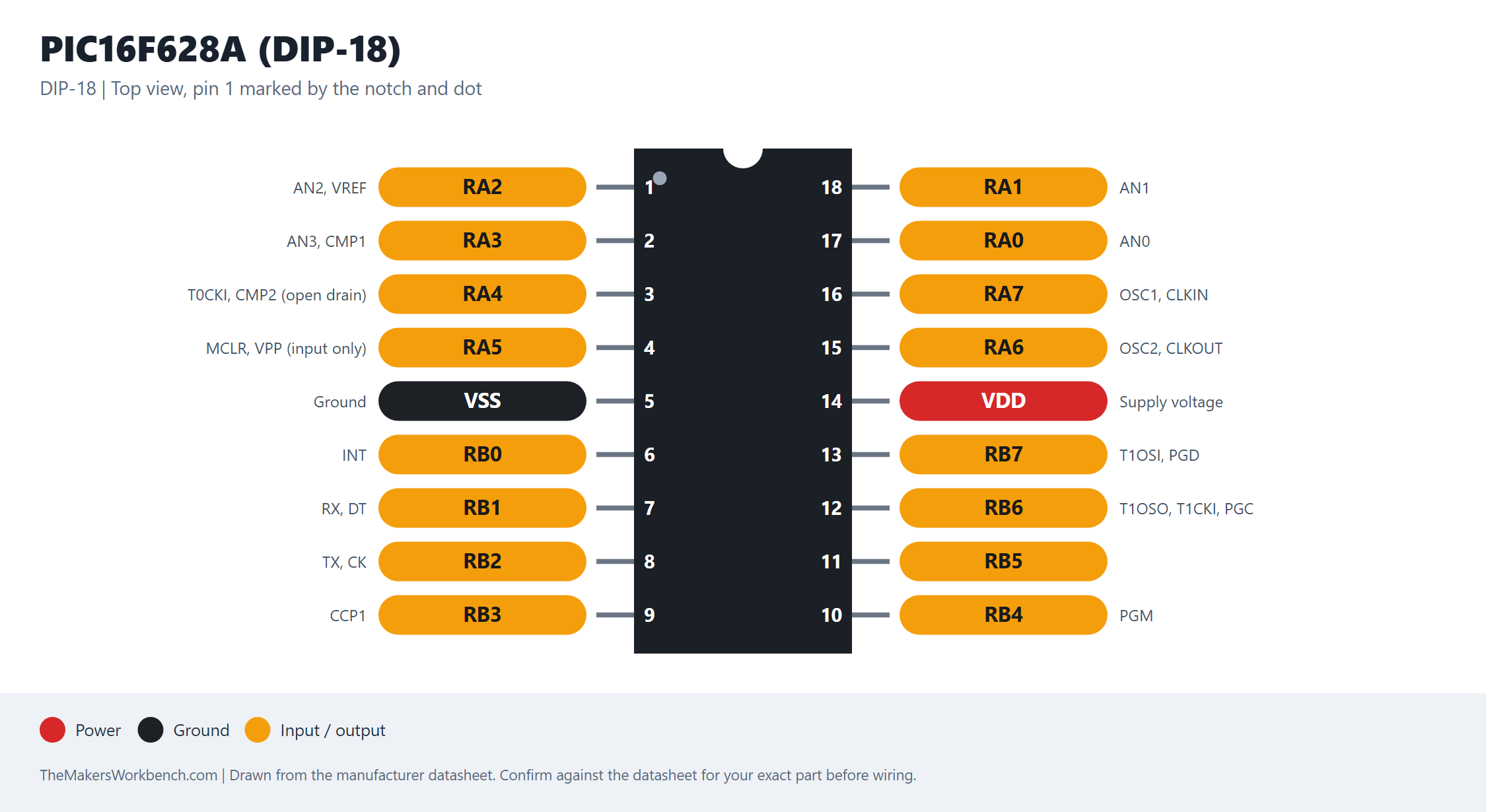

PIC16F628A (DIP-18) pinout
← All pinouts · Microcontroller chips
Notes
An 18-pin PIC with a hardware UART, two comparators and an internal 4 MHz oscillator. RA5 is input-only and doubles as MCLR. Programming (ICSP) uses MCLR, VDD, VSS, PGD and PGC.
