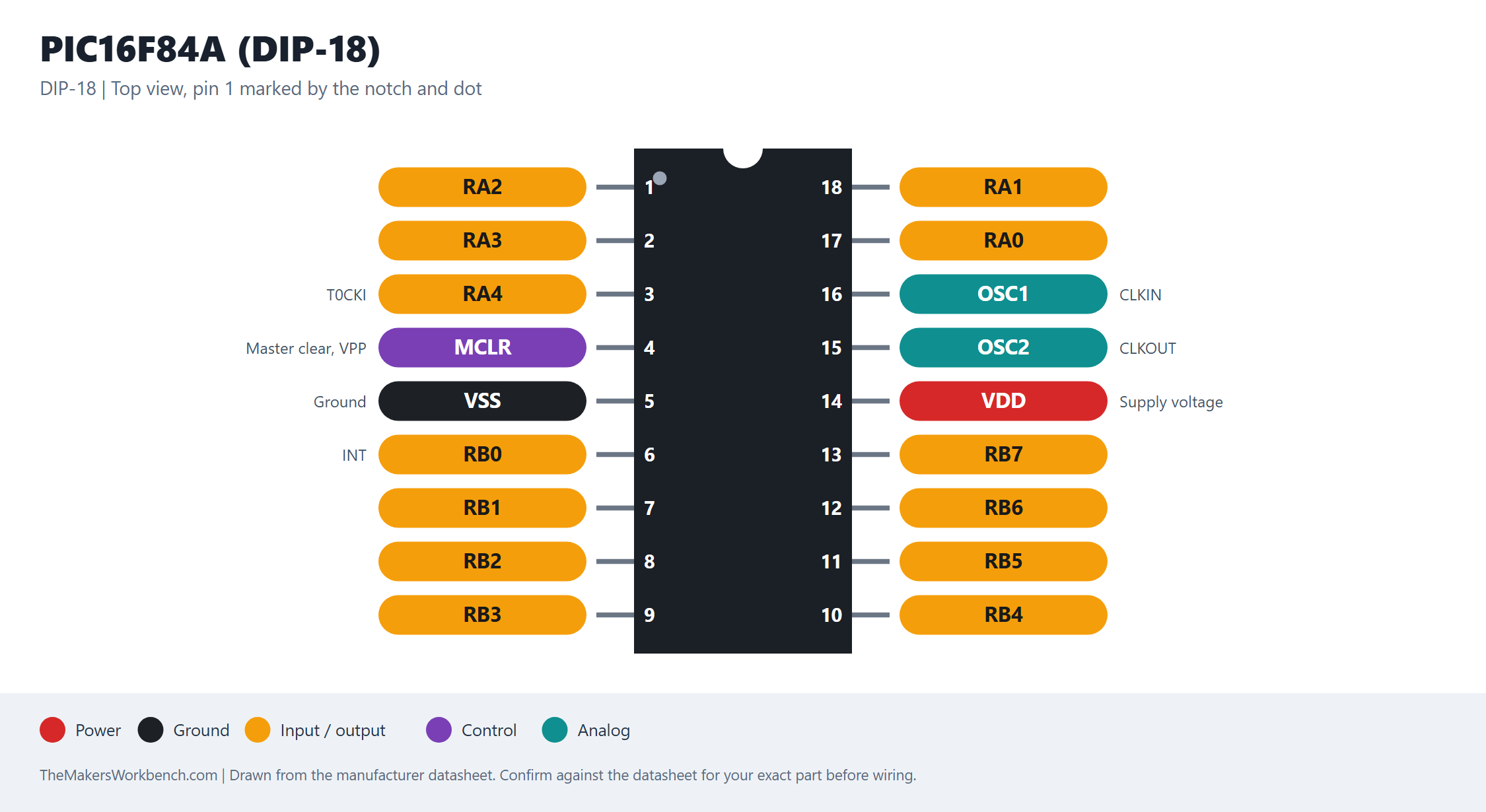

PIC16F84A (DIP-18) pinout
← All pinouts · Microcontroller chips
Click the image to open it full size.
Notes
The classic hobbyist PIC, 13 I/O lines and 1.75 KB of flash. RA4 is an open-drain output. Programming (ICSP) uses MCLR, VDD, VSS, PGD and PGC.
