PIC18F2550 (DIP-28) pinout
← All pinouts · Microcontroller chips

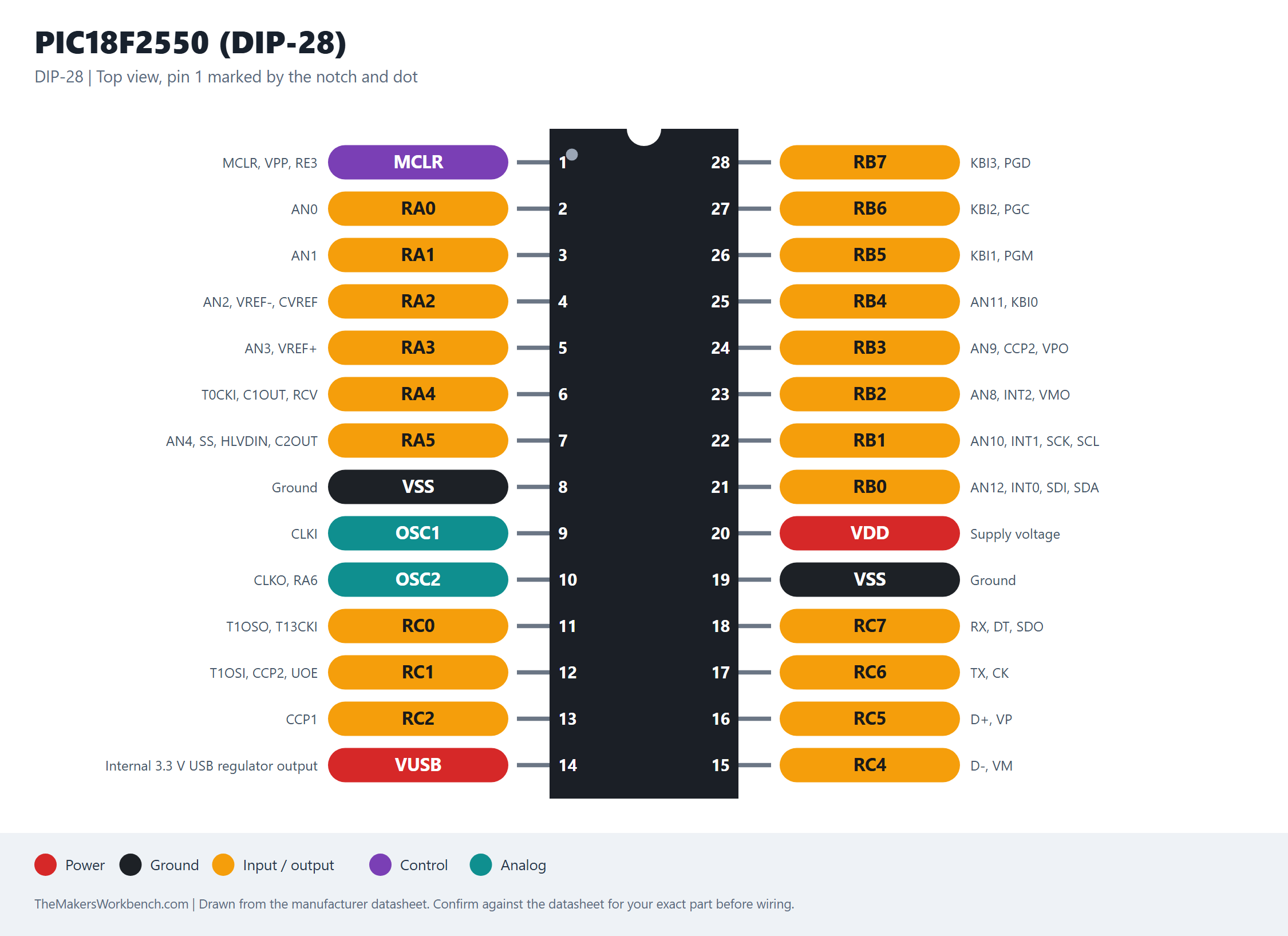

Click the image to open it full size.
Notes
The 28-pin sibling of the PIC18F4550, with the same built-in USB interface. A 220 nF capacitor goes from VUSB to ground. Programming (ICSP) uses MCLR, VDD, VSS, PGD and PGC.
