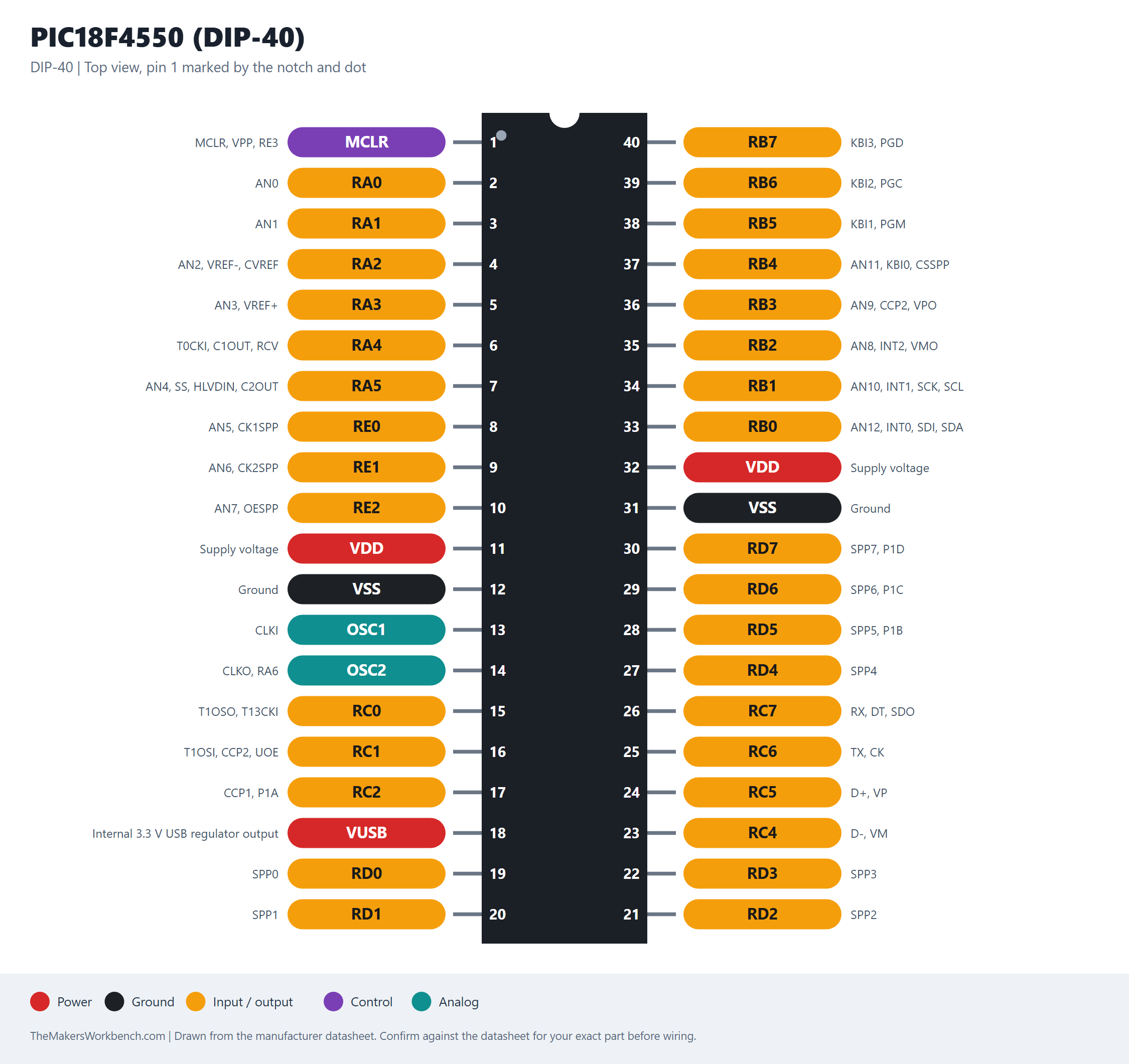

PIC18F4550 (DIP-40) pinout
← All pinouts · Microcontroller chips
Click the image to open it full size.
Notes
A 40-pin PIC with a built-in full-speed USB 2.0 interface (D+ on RC5, D- on RC4). A 220 nF capacitor goes from VUSB to ground. Programming (ICSP) uses MCLR, VDD, VSS, PGD and PGC.
