Raspberry Pi 40-pin GPIO header

Raspberry Pi 40-pin GPIO header pinout

← All pinouts · Boards

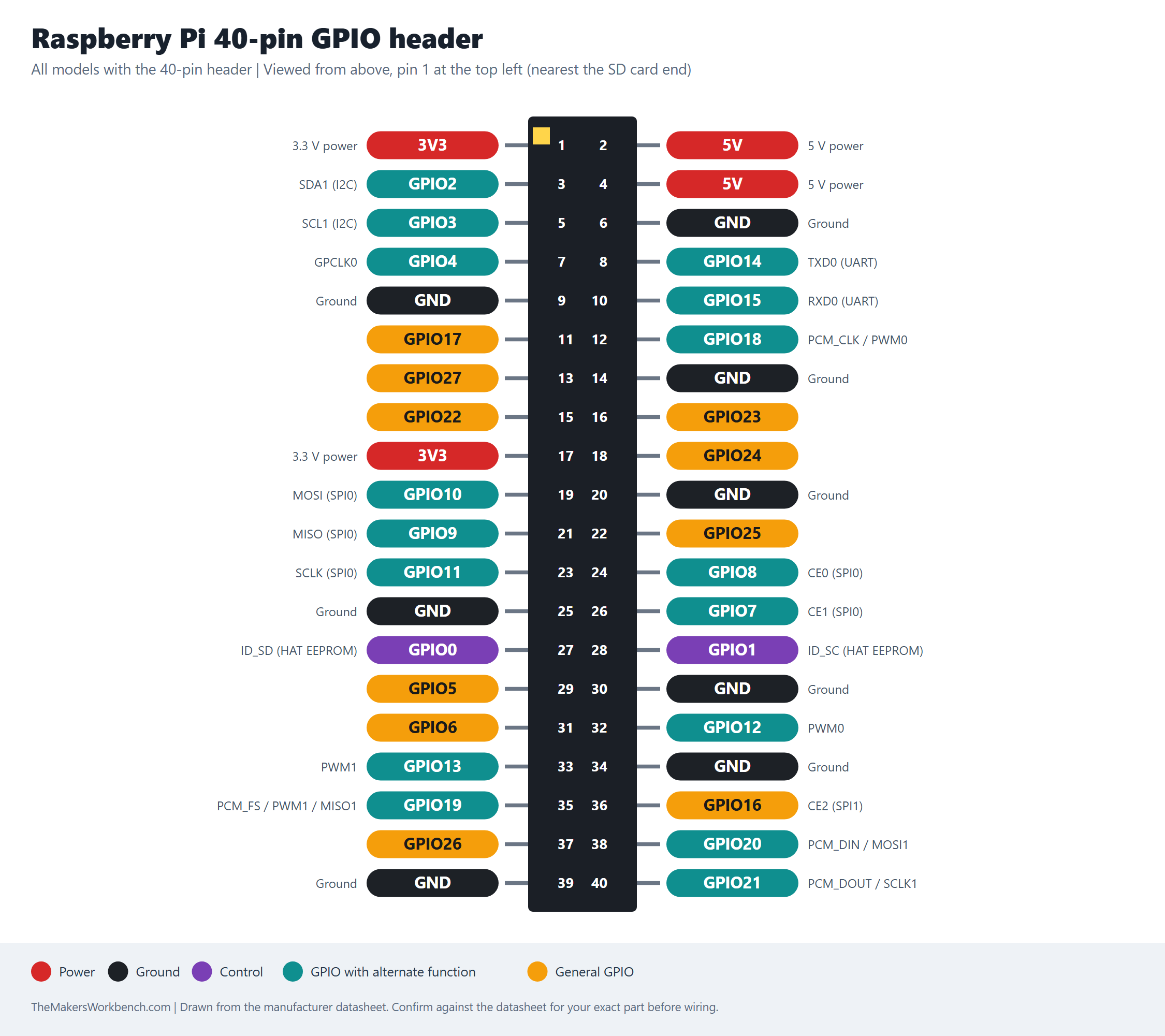

Raspberry Pi 40-pin GPIO header pinout diagram

Click the image to open it full size.

Notes

The same 40-pin header is on the Raspberry Pi 2, 3, 4, 5, Zero, and Zero 2. GPIO numbers are the Broadcom (BCM) numbers, not the physical pin numbers. All GPIO is 3.3 V and is not 5 V tolerant. The two ID pins (GPIO0 and GPIO1) are reserved for HAT identification EEPROMs.
