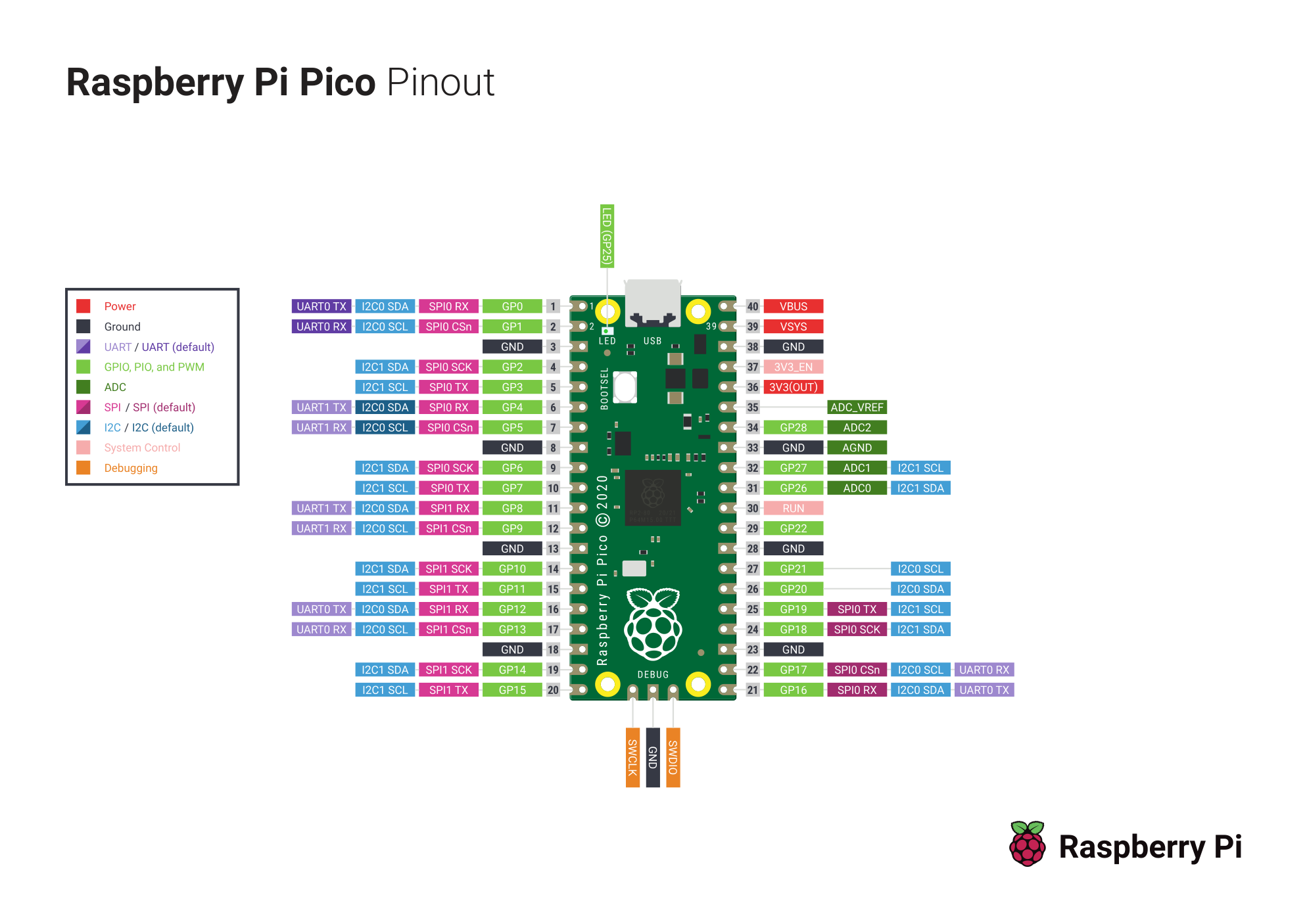

Raspberry Pi Pico pinout diagram

Click the image to open it full size.

Notes

The RP2040 board. GP0 to GP28 are the GPIO pins (GP23 to GP25 are used internally, and GP26 to GP28 can read analog). Pin 40 is VBUS (5 V from USB) and pin 39 is VSYS. The board runs at 3.3 V logic, so it is not 5 V tolerant.
