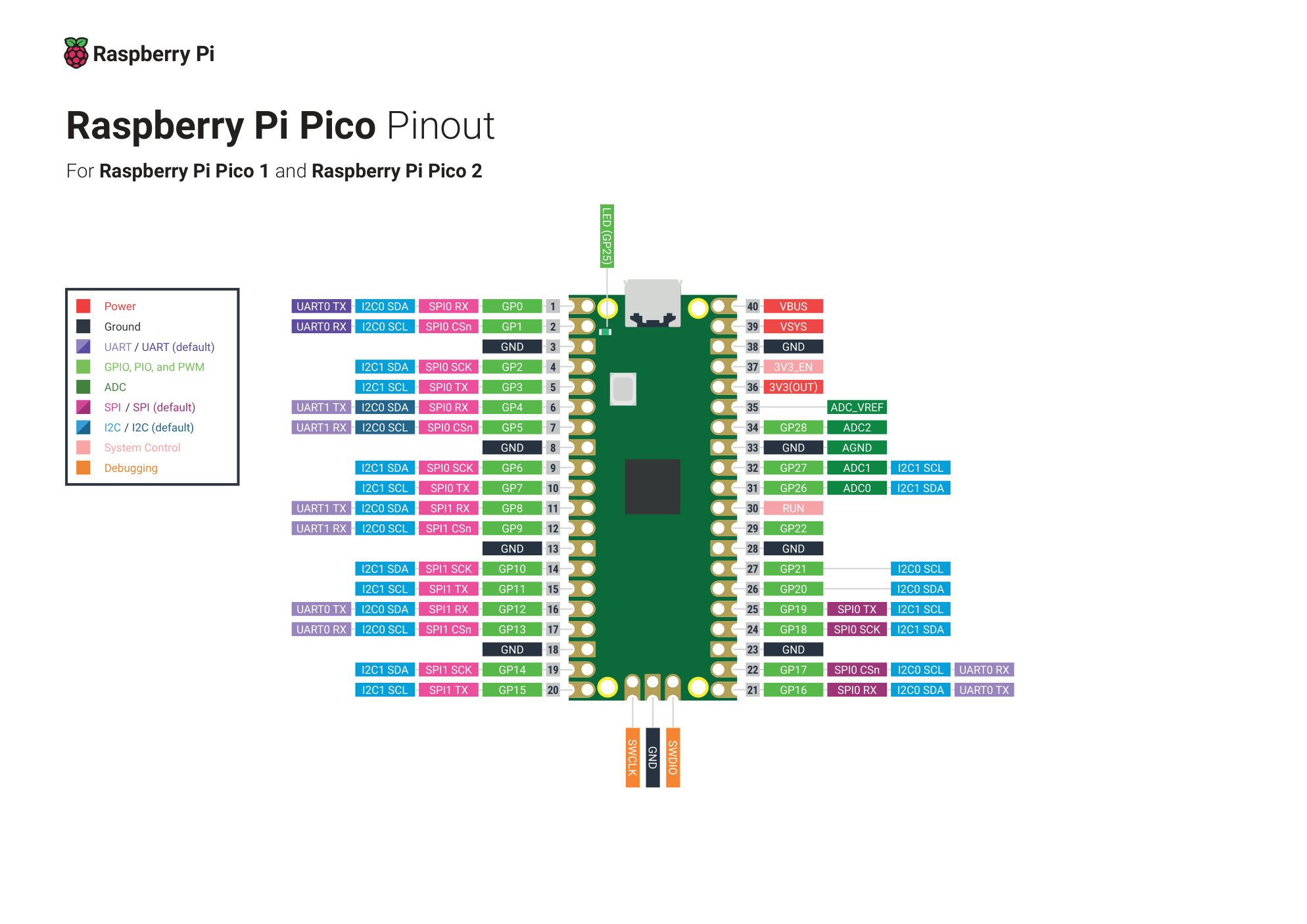

Raspberry Pi Pico 2 pinout
← All pinouts · Boards
Click the image to open it full size.
Notes
The RP2350 board. It keeps the original Pico pin layout, and the same diagram covers the Pico 2 W.
