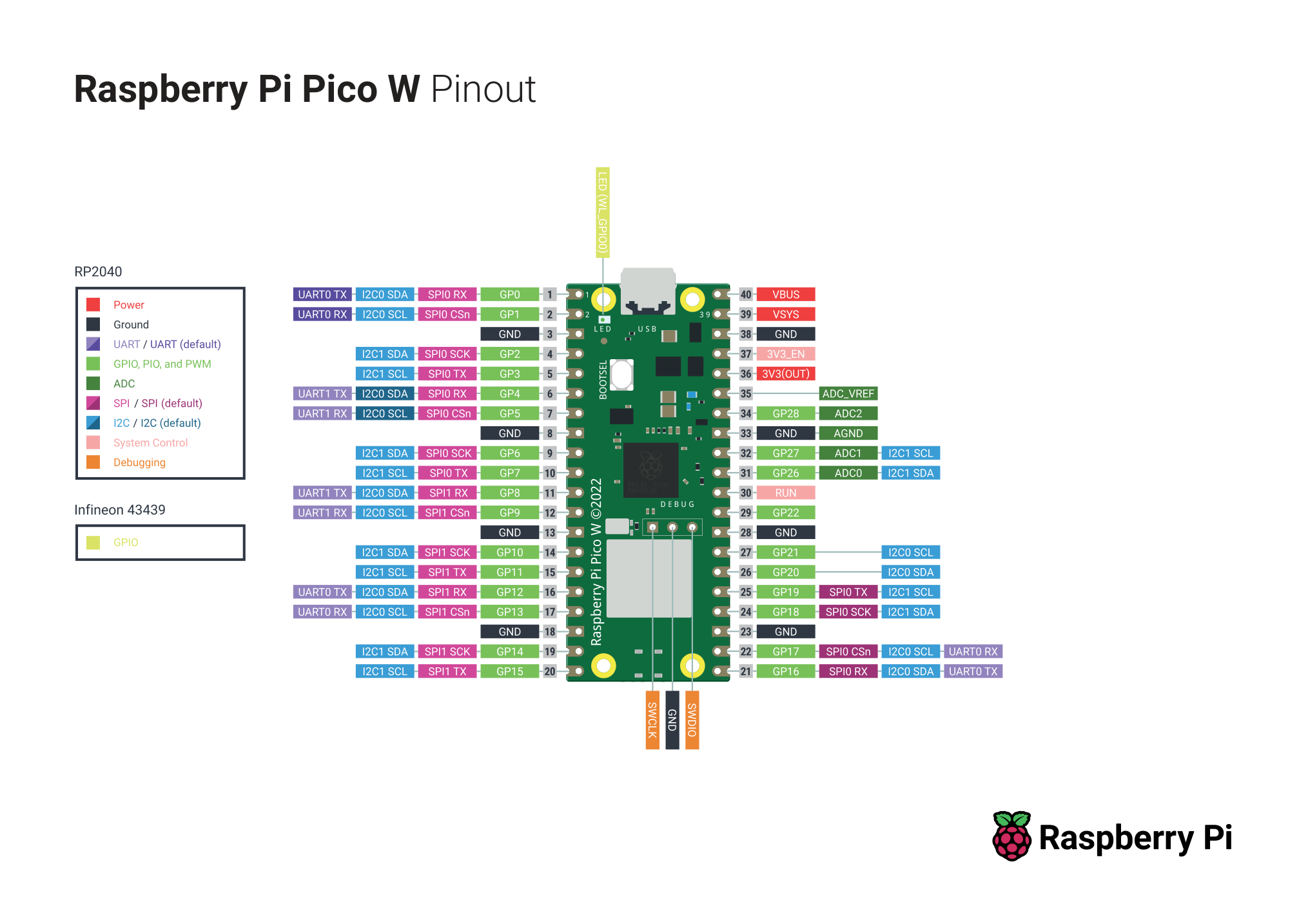

Raspberry Pi Pico W pinout
← All pinouts · Boards
Notes
Same pin layout as the Pico, with an added Wi-Fi and Bluetooth chip that uses GPIO23, 24, and 25 internally. The on-board LED is controlled through the wireless chip.
