S8050 / S8550 transistor (TO-92)

S8050 / S8550 transistor (TO-92) pinout

← All pinouts · Transistors and MOSFETs

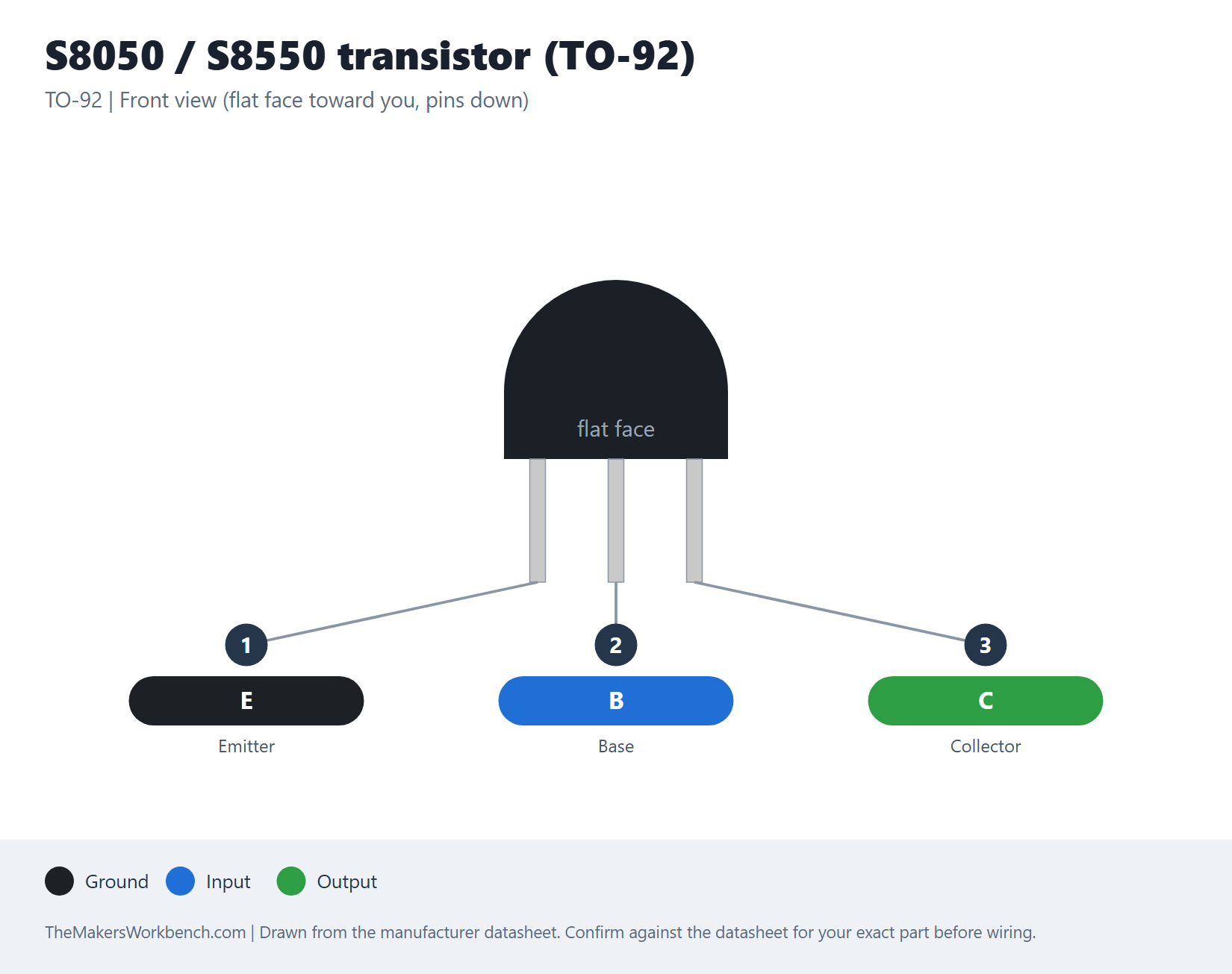

S8050 / S8550 transistor (TO-92) pinout diagram

Click the image to open it full size.

Notes

The S8050 is NPN and the S8550 is PNP. Pin order varies between makers, so check yours with a multimeter.
