Teensy 4.0

Teensy 4.0 pinout

← All pinouts · Boards

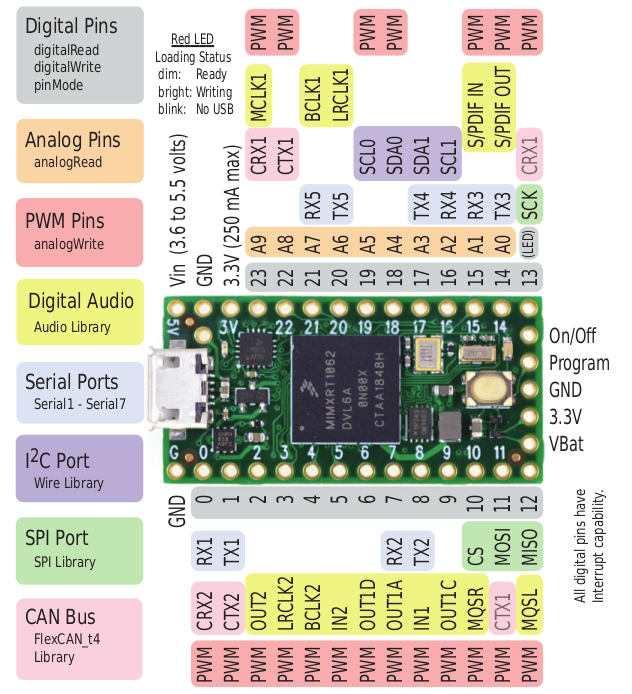

Teensy 4.0 pinout diagram

Click the image to open it full size.

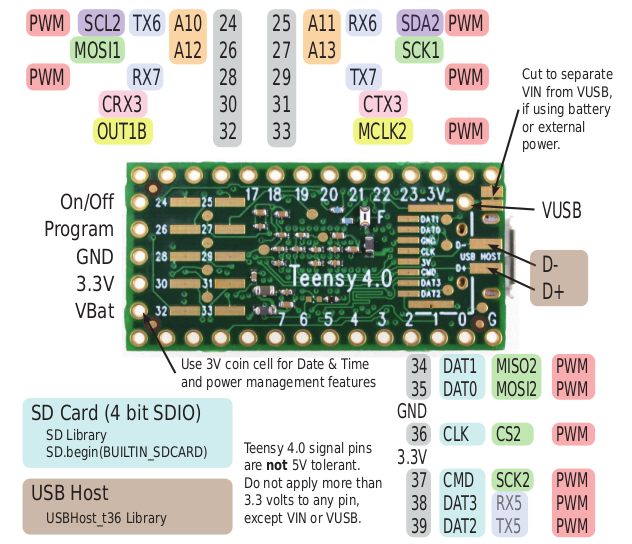

Teensy 4.0 pinout diagram (alternate view)

Notes

Front and back pin assignments. All I/O pins are 3.3 V only.
