Teensy 4.1 pinout
← All pinouts · Boards
Click the image to open it full size.
Notes

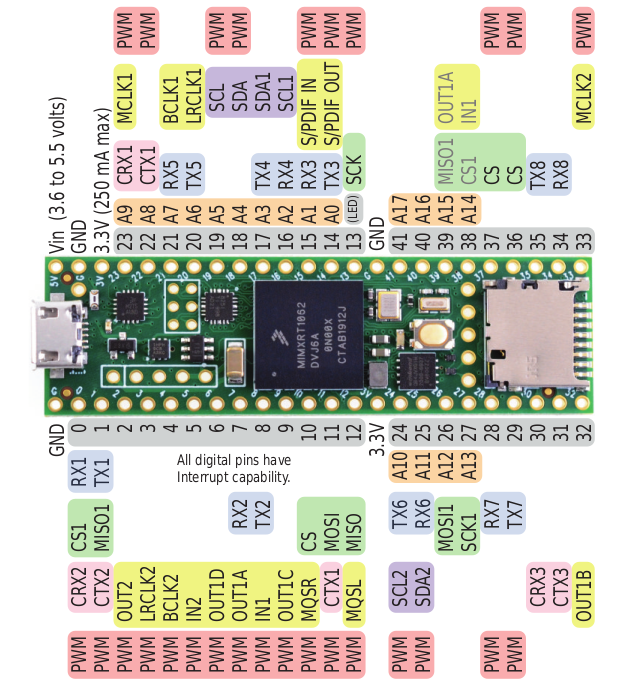

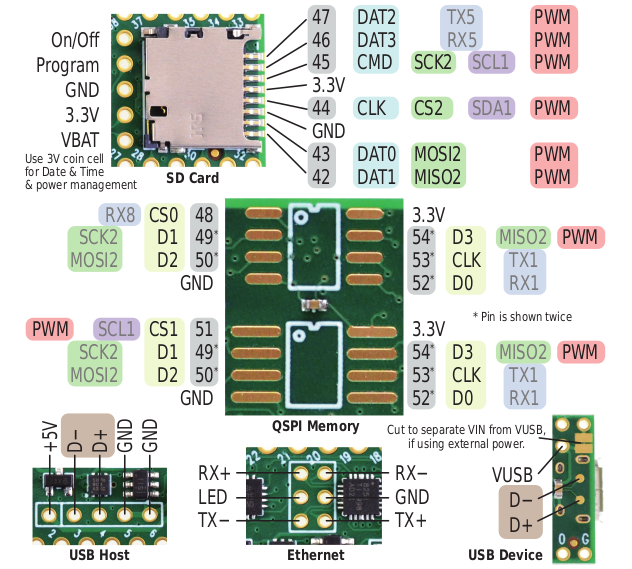

Front and back pin assignments. The back side carries the SD card, USB host, and Ethernet pads. All I/O pins are 3.3 V only.
Teensy 4.1
