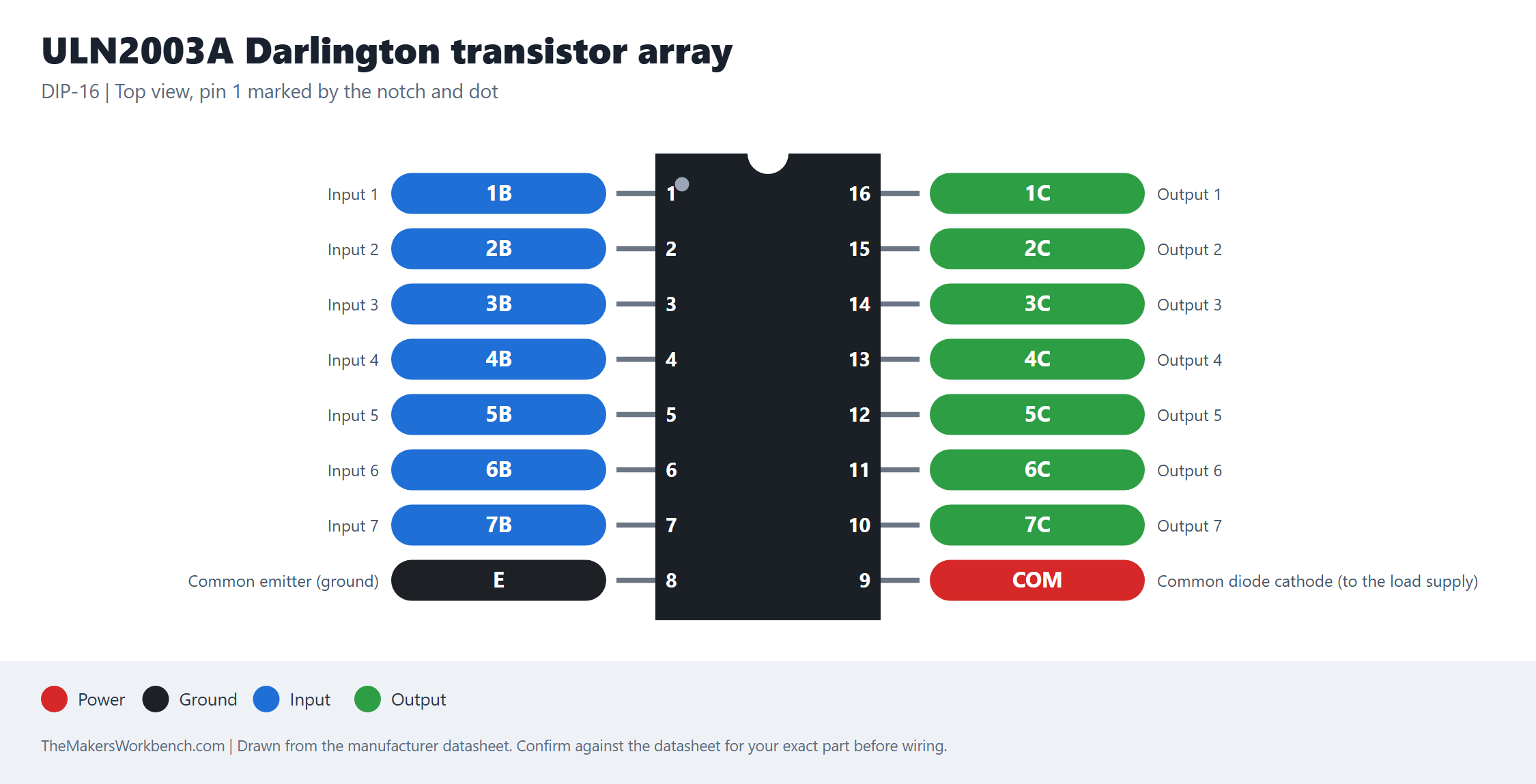

ULN2003A Darlington transistor array pinout
← All pinouts · Motor drivers
Click the image to open it full size.
Notes
Seven open-collector outputs, each up to 500 mA. It sinks current to ground. The 28BYJ-48 stepper driver board is built around this chip.
