W25Q32 SPI flash memory

W25Q32 SPI flash memory pinout

← All pinouts · Memory

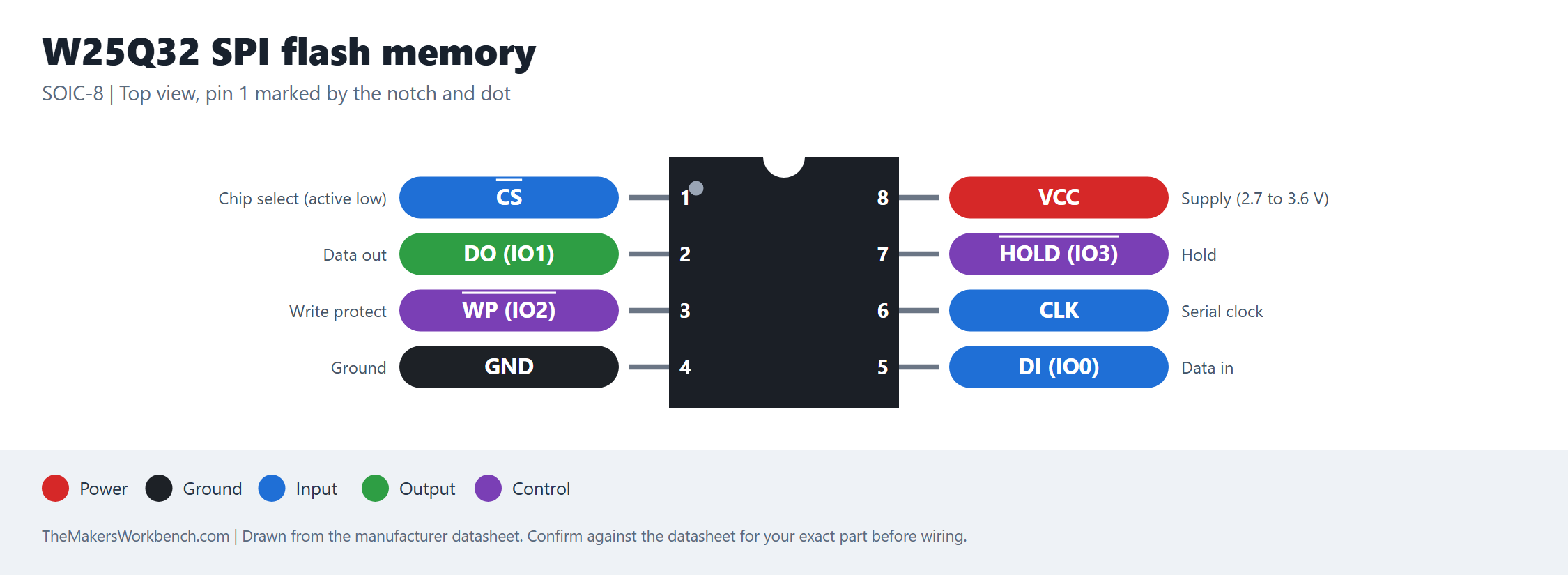

W25Q32 SPI flash memory pinout diagram

Click the image to open it full size.

Notes

3.3 V part. Do not connect it directly to 5 V logic. The 8-pin SOIC pinout is shared by the W25Q16 through W25Q128.
