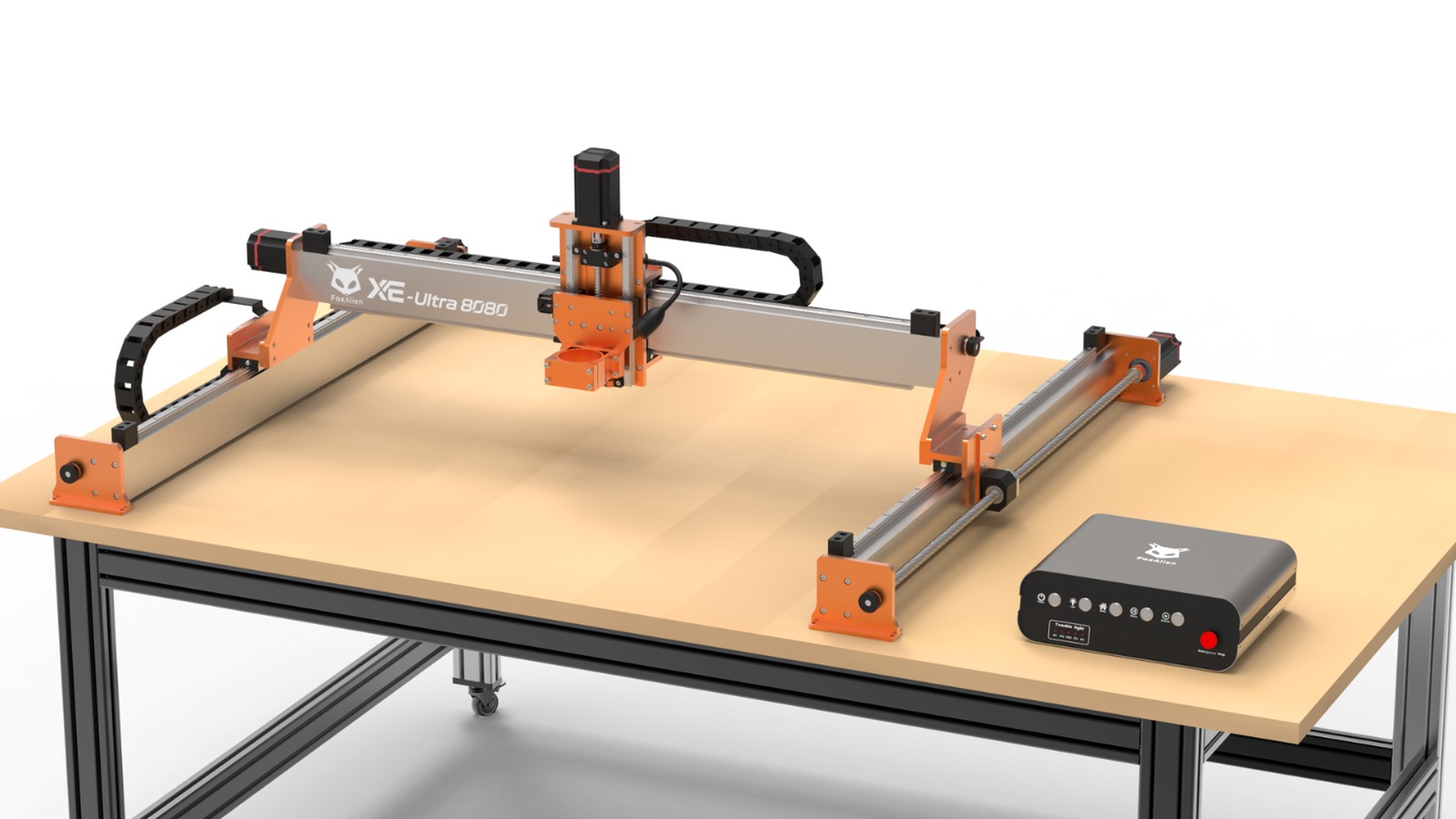

FoxAlien added a new CNC router called the XE-Ultra 8080 to its online store on July 21, 2025. The price is $1,799, and that figure buys the machine only. FoxAlien says the spindle (the motor that spins the cutter) is not included, and neither is the spoilboard, the sacrificial board you cut into so the bit never touches the frame.
TMWB has not tested this machine. Everything below comes from FoxAlien's own product listing, so treat the numbers as the company's claims until someone cuts a known part and measures it.
What did FoxAlien list?

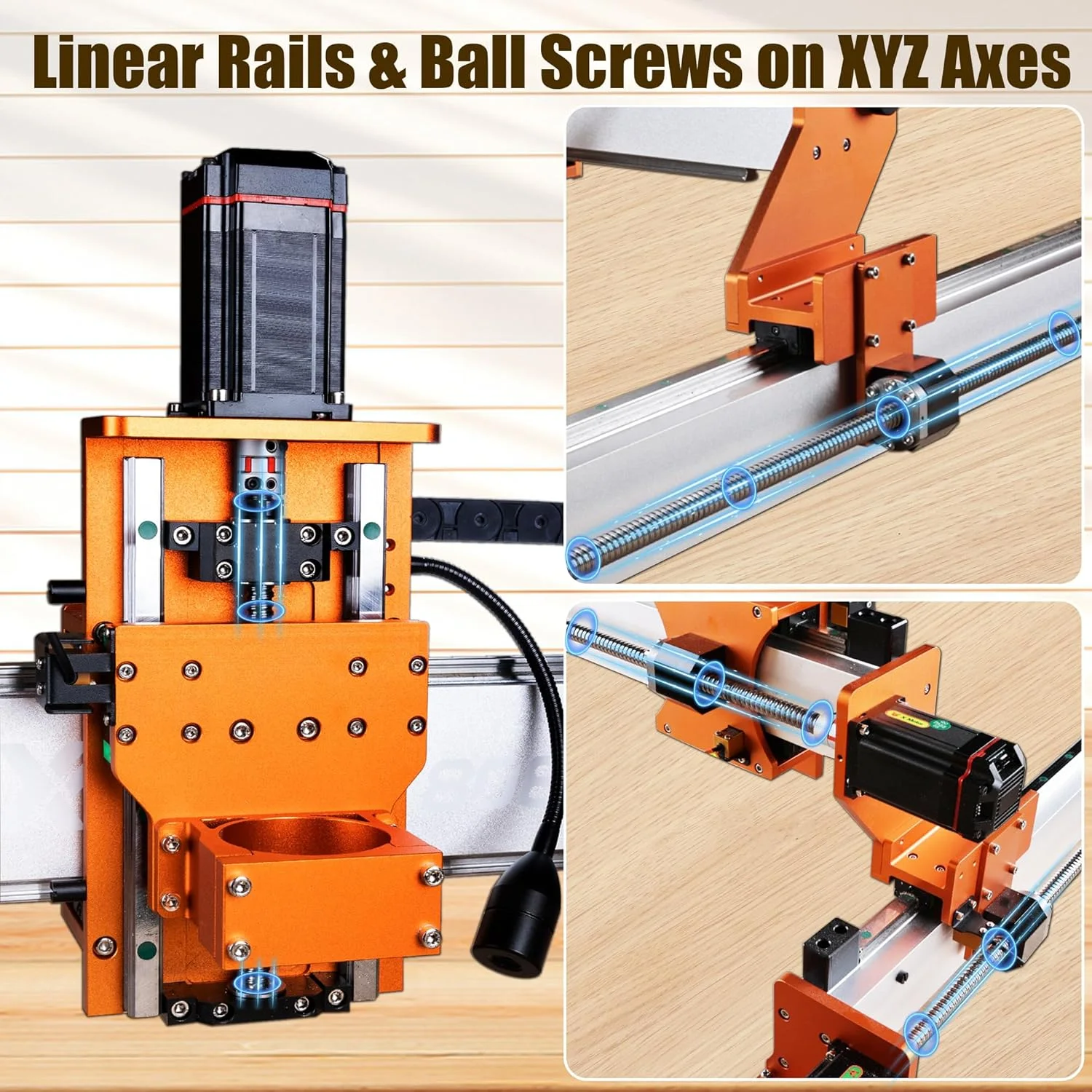

The headline feature is the motion system. FoxAlien says the XE-Ultra uses linear rails and ball screws on all three axes. A ball screw is a threaded rod with a nut full of recirculating steel balls. Compared with a plain leadscrew, it usually has less backlash, which is the slop you feel when an axis reverses direction. Linear rails are profiled steel tracks with bearing blocks riding on them. They resist twisting better than the V-wheels (small wheels rolling along an aluminum edge) that a lot of entry-level routers still use.
FoxAlien says that combination will "greatly improve" engraving accuracy. The listing does not publish a measured accuracy or repeatability figure to back that up, so I'd file it under marketing for now.
The motors are NEMA 23 closed-loop steppers rated at 2.6 N·m. NEMA 23 describes the motor's face size, about 2.3 inches across, and N·m (newton-meters) is a measure of twisting force. A stepper motor turns in counted steps. Closed loop means the drive can tell when the motor failed to make a step, so it can stop or correct instead of quietly carving the wrong shape for the rest of the job.
The listing gives a top moving speed of 5,000 mm/min, which is about 197 inches per minute. That is a rapid, the fast move the machine makes through the air between cuts. A feed rate (the slower move while the bit is actually cutting) is a separate number, and the page doesn't give one for oak or MDF.
The control board is described only as 32-bit, with no named software. I'd assume a GRBL-style workflow until FoxAlien says otherwise. GRBL is the common open-source firmware that turns G-code (the text file of moves your CAM program produces) into motor pulses. You will still need a computer or an offline controller, plus a CAM program, which is the software that turns a drawing into those toolpaths.
How big is it, really?

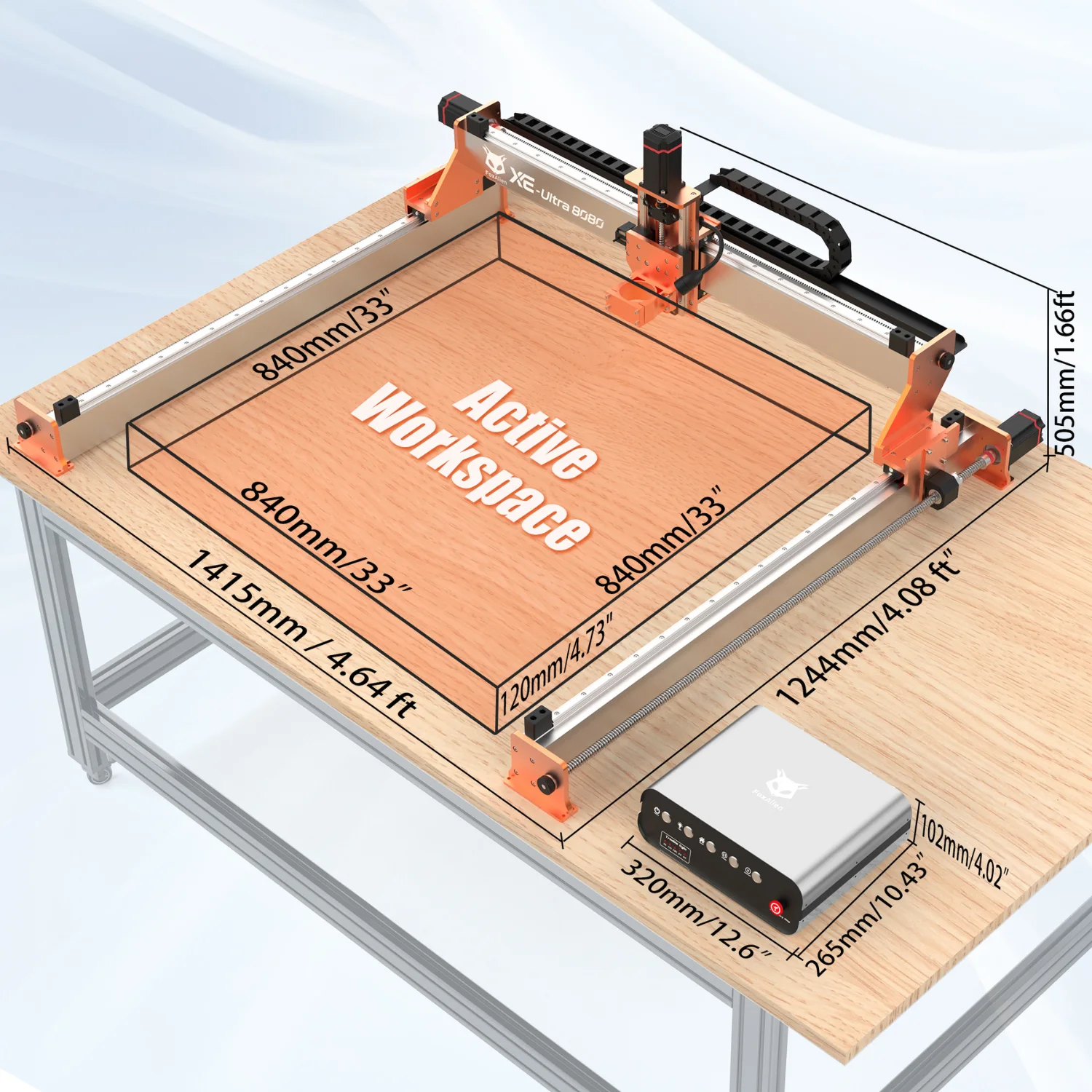

The specification block lists an active workspace of 840 × 840 × 120 mm, which is about 33 × 33 × 4.7 inches. A second line in the description says 800 × 800 mm instead. The difference is 40 mm, roughly an inch and a half. If I ordered one, I'd cut a test square and measure it before promising a customer a part that needs the bigger number.
The footprint is listed as 1415 × 1244 × 505 mm, or about 56 × 49 × 20 inches. The page never labels which dimension is which, but the 505 mm figure is the likely height. Either way, this is a router that needs a proper bench with room to stand in front of it when a clamp slips.
That 120 mm of Z travel is the number I'd circle. It has to cover the spoilboard, the thickness of your stock, and however much bit sticks out of the collet (the sleeve that grips the cutter's shank). It's plenty for signs, trays, inlays, and flat furniture parts. It isn't much for tall 3D carving or for standing a board on edge.
What do you get in the box?
The box list is short: the 8080 machine, a controller box, a Z probe for setting tool height, a test piece of MDF (medium-density fiberboard), ten engraving bits (30 degrees, 0.2 mm tip), a screw box, and wrenches. Those engraving bits suit fine lines in the test board. They're a poor match for clearing out a tray, and that job needs end mills and a real spindle.

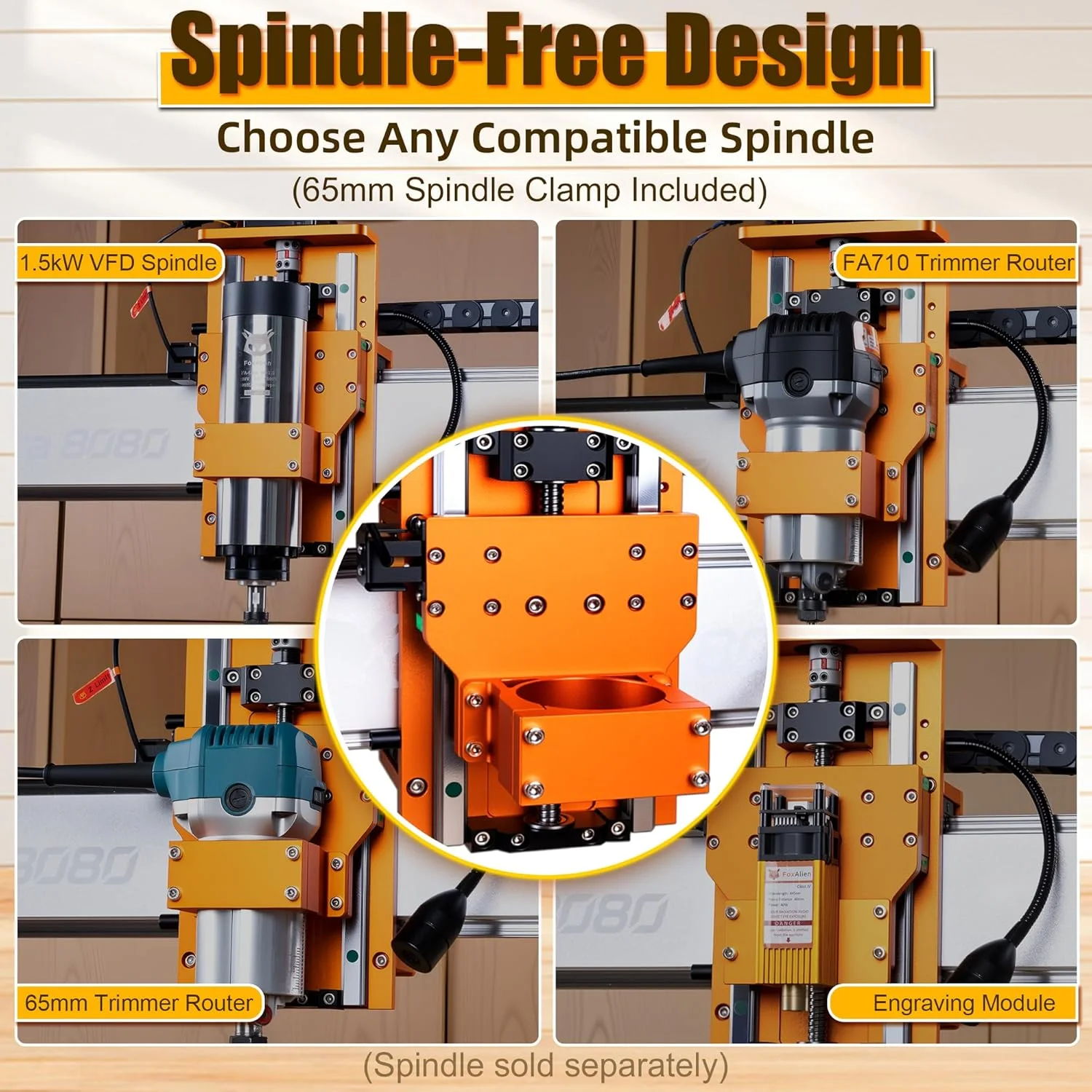

FoxAlien says it supports a range of spindles with a 65 mm clamp included, and its store already sells 1.5 kW spindle kits for other machines in the line. The XE-Ultra page doesn't bundle one, and it doesn't print a price for adding one.
How does it compare with the Shapeoko, LongMill, and Onefinity?
In the summer of 2025, the machines near this price form a mixed group. Carbide 3D's Shapeoko 5 Pro is the default pick for a lot of U.S. shops that want a router that arrives and cuts wood, backed by Carbide Motion software and a huge library of forum answers. Sienci's LongMill MK2 is the leadscrew machine people buy for a large sheet at a lower price. Onefinity's first-generation Elite is the ball screw router that already pushed a lot of belt-drive machines out of the conversation.
The XE-Ultra sits in the same mechanical neighborhood as the Onefinity, with closed-loop motors and screws on every axis. The $1,799 machine-only price looks friendly right up until the spindle invoice arrives. Add a trim router or spindle kit and a spoilboard, and the comparison with a Shapeoko or Onefinity gets a lot closer.
Aluminum is plausible on a ball screw gantry this size if the spindle you add has the torque and you keep your cuts shallow. FoxAlien doesn't claim this is a steel-cutting machine, and I wouldn't treat it as one.
Who is it for, and what's still unknown?
If you already own a trim router you like, or you know you want a water-cooled spindle and you're willing to wire it up, the $1,799 frame is a real option next to the Shapeoko and the Onefinity. If you want one box, one plug, and a bit that cuts this weekend, this listing is the wrong shape of product.
The open questions are the practical ones. There is no shipping weight, no word on whether the frame arrives square, and no accuracy figure you could hold the company to. The two workspace numbers don't match. And because the spindle is a separate purchase, two XE-Ultras on two benches could be very different tools. FoxAlien hasn't said when review units will be out, so the stiffness of an 840 mm gantry remains a claim.
Sources and image credits
- FoxAlien XE-Ultra product page (the product record is the announcement, and there was no separate press release)
- Product images: FoxAlien product listing
